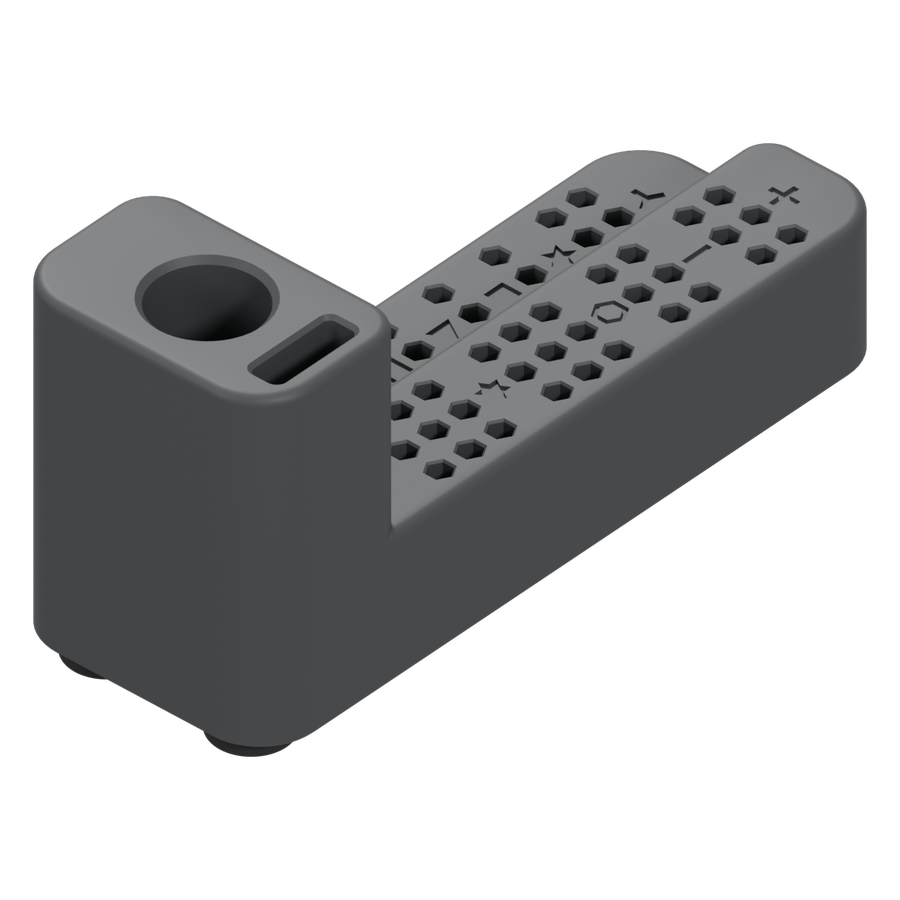

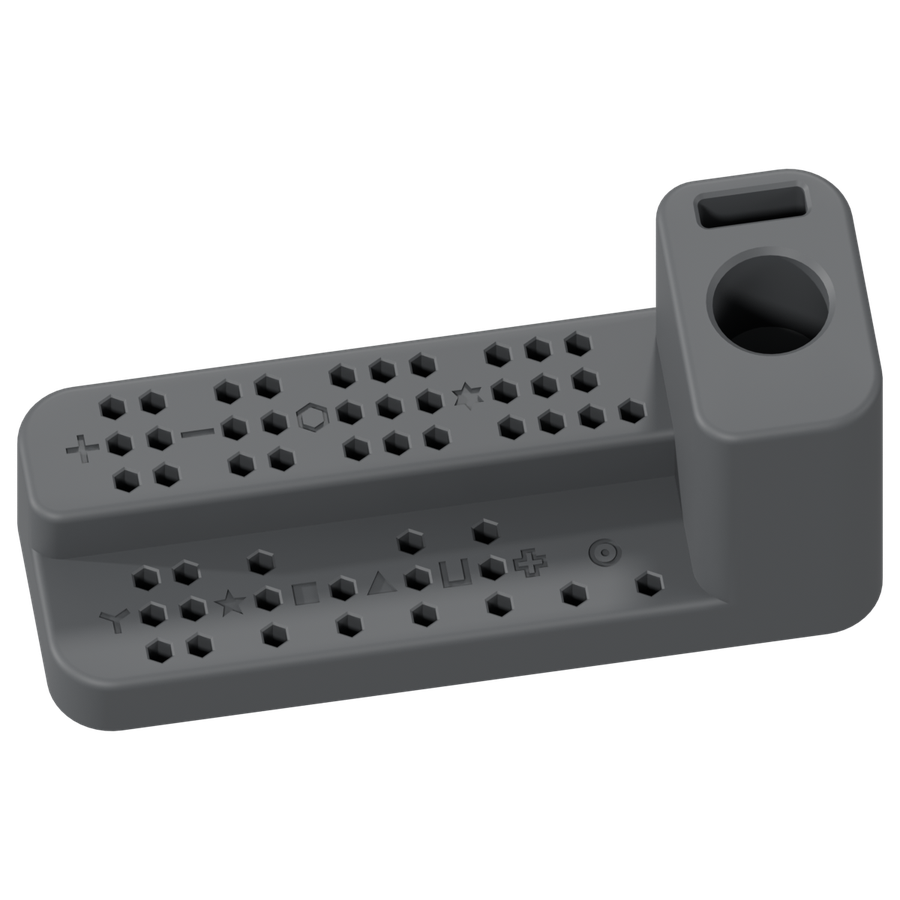

3D render of the Terrace Dock stand on its optional feetActual model render · No physical item
Desk dock & bit organiser / HS-DSK-001-D

Terrace Dock

A desk stand for the Fanttik NEX E2 Ultra precision screwdriver. The driver docks upright with its USB-C port facing up, beside 50 labelled pockets for every bit in the set.

$3.99USD · launch price
Included3 models · 3MF + STL
FormatDigital download
Material start pointPETG or PETG-CF
Getting ready for your workbench.

This design is previewing ahead of its marketplace launch. Purchasing is not open yet.

Ask us about availability ↗

3D print files only. You’ll need a 3D printer; the optional feet also need inserts and screws. The files passed digital mesh, dimension and slicer checks, a Harbe Works prototype stand has been printed, and the pocket size was checked with a genuine NEX E2 Ultra bit set. Images are 3D renders.

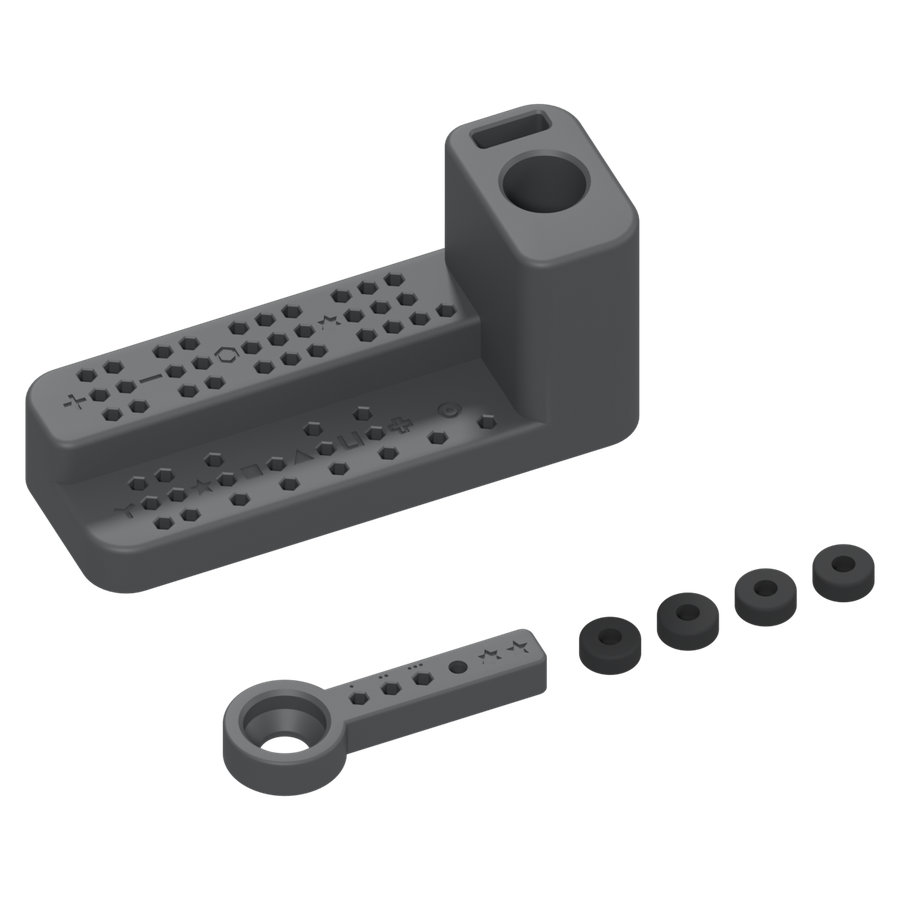

What’s in the pack
  • Stand with driver dock, tool slot and 50 hex pockets in 11 symbol-marked sections
  • Optional TPU foot, printed four times, for M3 heat-set inserts
  • Fit coupon with the dock seat, three pocket sizes and an insert pilot
  • Every part as both 3MF and STL
  • START_HERE.txt, DIMENSIONS.csv and LICENSE.txt

The stand, foot and fit coupon arrive together in one ZIP, each as 3MF and STL. The Fanttik screwdriver, bits, inserts, screws, native CAD, machine G-code and slicer projects are not included.

Dimensions & fit
Terrace Dock dimensions
Stand156 × 58 × 72 mm
Height with optional feet77 mm
Driver dockØ21.6 mm bore with a 45° seat
Bit pockets50 × 4.35 mm across flats
Pocket depth12 mm, or 20 mm for the six 45 mm bits
Tool slot20 × 6.5 × 45 mm
Reference slice, standAbout 6 h · 149 g PETG (Bambu A1 profile)

Designed around Fanttik’s published 0.8 × 6.65 in driver size and its 5/32 in hex bits; the 45° seat centres the driver body. Import at 100% scale in millimetres, never scale the dock, and print the fit coupon in your filament first.

Compatibility & trademarks

Designed for the Fanttik NEX E2 Ultra and the 50 bits supplied with it: 12 bit types in 11 sections, with plain and security Torx sharing one. Other E2 models and other brands were not the design basis.

Fanttik and NEX E2 Ultra are names of their owner, used only to describe compatibility. Harbe Works is an independent studio and is not affiliated with, sponsored or endorsed by Fanttik. The driver and bits in the images are simplified reference shapes.

Printing & materials

Print the stand in PETG or PETG-CF with its flat base on the plate and no supports. 0.2 mm layers, 4 walls and 20–25% gyroid infill are a sensible starting point; use a hardened nozzle for PETG-CF.

Print the fit coupon first, in the same filament. Bits should go into its two-dot pocket by hand; if they bind, a small increase in X-Y hole compensation opens every hole slightly.

Optional feet: print four in TPU 95A HF and fix each with an M3 × 8 mm screw into an M3xL4xD5 brass heat-set insert. The stand also sits directly on its flat base.

Read the Terrace Dock guide ↗
Licence & use

Print the dock, feet and coupon for your own personal use. Selling printed docks, and sharing or reselling the digital files, is not included.

No load, drop, heat, charging-safety or long-term durability claim is made. Follow Fanttik’s own charging and safety instructions.

Read the full file licence ↗
File help & support

Email help@harbeworks.com with the design, file name, printer and slicer details. For an order, include your marketplace order reference in your private message.

Version 1.0.0. We’ll help investigate file access or a suspected defect. Your marketplace’s purchase policies and applicable consumer rights apply.
